1) Purpose of equipment
This machine test is use for bed frame fastening durability, bed base and edge durability for single bed
and double decker bed with following BS EN
2)Standard : - vertical impact test (BS EN 1725:1998,Clause 7.4)
- Durability test on bed base (BS EN 1725:1998,Clause 7.4& BS EN 747-2:2012+A1 :2015 ,clause 5.4.5)
- Durability of treads (BS EN 747-2:2012+A1:2015, Clause 5.6.3)
- Durability test on frame and fastening ( BS EN 747-2: 2012+A1 : 2015, Clause 5.5 )
- Static load test of safety barriers ( BS EN 747-2: 2012+ A1: 2015,clause 5.4.2 )
- Vertical static load on treads (BS EN 747-2:2012 + A1 :2015, clause 5.6.1 )
- Horizontal static load on treads (BS EN 747-2:2012+ A1: 2015, clause 5.6.2 )
- Vertical static load (BS EN 1725: 1998 , Clause 7.6)
3)Quantity required
One(1) unit – BS EN1725:1998 & EN 747-2:2012:A1:2015
4) Technical specifications
This machine need to be designed that can able to handle vertical load and horizontal load apply to
single bed or double decker bed and need to fulfill needed at minimum as follow:
a) Size frame : 4m (W) x 2.5m (L) x 3m (H)
b)Cylinder
-Pneumatic double acting cylinder
-Four (4) horizontal cylinder-For frame fastening (EN747) test
-Two (2) vertical cylinder- for bed base/edge durability test
-Adjustable position – height (500-2500 mm from the platform), horizontal distance (adjustable along
the frame perimeter)
c)Loading pad (spec En 1728)
-4 X Local loading pad- 100 mm diameter attached to the horizontal cylinder
-2 X seat loading pad – attached to the vertical cylinder (bed edge test)
-2 X smaller loading pad- 200 mm diameter attached to the vertical cylinder (bed base test)

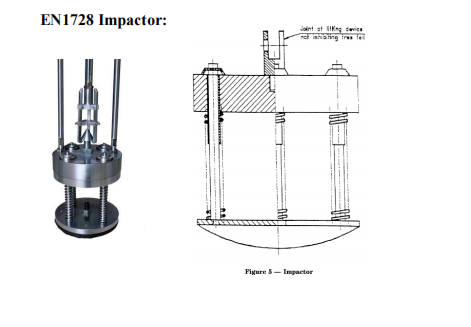

d)One(1) impact tester – for impact test (spec En1728) research
e)Timer
–
to apply and hold the vertical force for One(1) minute
f)Cycle
–
1-100000 (6-digit)
g)Air source 7kg/cm²
h)PLC programmable color controller, touch screen interface, program coding supplied
4)Features :
Our furniture instrument competitive features :
1.European standard aluminum profile
(Thickness and strength 5 times higher than industry)
2. U.S.-origin high-precision force sensors
3. Ades a cylinder
4. Portable magnet retainer
?5. Customize the 1 to 1 load block to standard
